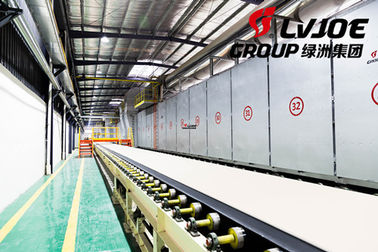

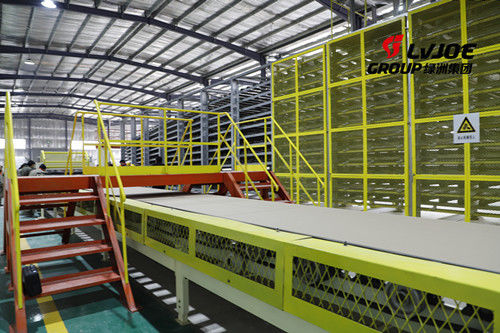

China gypsum wallboard machine manufacturer for various types of gypsum boards

China gypsum wallboard machine manufacturer for various types of gypsum boards

    • China gypsum wallboard machine manufacturer for various types of gypsum boards
    • China gypsum wallboard machine manufacturer for various types of gypsum boards
  • China gypsum wallboard machine manufacturer for various types of gypsum boards

    Product Details:

    Place of Origin: Hebei, China
    Brand Name: CNLVJOE2020
    Certification: CE,SGS, ISO9001
    Model Number: LVJOE202004021

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD650000 per set
    Packaging Details: packages which are fit for long distance transportant by 40 HQ container
    Delivery Time: 3 months
    Payment Terms: T/T, L/C
    Supply Ability: 6 production lines per year
    Contact Now
    Detailed Product Description
    Name: Gypsum Wallboard Machine Automation: Semi-automatic And Automatic
    Fuel: Natural Gas, Coal,heavy Oil, Etc Voltage: 220V/380V/415V
    Brand: LVJOE Capacity: 2-50 Million Square Meter Per Year

    Paper Faced gypsum Board machine





    Gypsum board machine

    Plaster board machine is a kind of light weight board decoration material with many specifications.whose main raw material are calcined gypsum(natural gypsum,desulfurized gypsum,phosphor gypsum)and card board(face paper),adding certain percentage of water,starch,additives and foaming agent,after mixing,forming,cutting,drying,shearing and sealing procedures etc.It got the features as:light weight,fire-proof,heat insulation,vibration-proof,heat insulation,vibration-proof,simple to produce,easy of application,elegant decoration effect etc.



    Annual Capacitythousand/m2 Length of the Workshop(m) workshop(m) Container (40 feet) Workers for one shift
    200 80 80×30 4 10
    300 95 95×35 6 10
    400 110 110×40 8 12
    500 125 125×40 10 12
    600 140 140×50 12 13
    800 160 160×50 16 16
    1000 180 180×50 20 19
    1200 220 220×70 25 19
    1500 270 270×70 35 16
    2000 340 340×70 50 18
    2500 410 410×70 60 20
    3000 480 480×70 70 20


    Main equipments

    Paper supply system of plaster board machine

    It equips with the following machine: the special pneumatic shaft and magnetic powder brake. It has the exact paper connection device and the high definition automatic alignment device. Moreover, the automatic marking device is very important to the edge trimming and shaping and insures the appearance of the gypsum board.





    Gypsum powder supply system of plaster board machine

    It takes the special material feeder and exact belt measurement as the core for the powder supply system. Thus it provides the reliable guarantee for the normal supply of the gypsum powder.





    Water supply system of plaster board machine

    It has the accurate screw measurement pump and visual liquid flowmeter device which have a great help for the operation.





    .foaming system of plaster board machine

    It this system, it uses the high volume pressostat to supply the gas. The accurate screw measuring pump and advanced foaming station make the liquid uniformly enter into the mixer, thus it has a key effect on the weight of the products.





    forming system of plaster board machine

    The vertical mixer and the pneumatic forming device are made of the special wearable stainless steels which enhance the systems wearable ability and prolong the life span of the gypsum board production line.





    conveying system of plaster board machine

    This system adds the wasted board removal device which reduces the workers labor intensity and ensure the clearness of the workshop.







    drying system of plaster board machine

    The drying system is the core of the whole production line and it has the direct effect on the quality and the energy consumption of the products. In the dryer, there are many sinuous coils for heat releasing. Outside of the dryer, there is the heat exchanger and the dry hot air is blowed into each distributor to adjust the temperature of each layer and separate temperature zone freely, thus it guarantee the quality of the gypsum board.





    .heating system of plaster board machine

    Most of this system uses the organic thermal carrier boiler(thermaloil boiler). In the gypsum board industry, the thermal oil boiler is a kind of normal pressure and high temperature heating equipment with the main fuel of coal, oil and gas. It takes the thermal oil as the carrier and is carried into the dryer by the induced draft fan, so that it can fully make use of the heat energy and reduce the cost of the products.





    size fixing system of plaster board machine

    This system equipped with overturner, folding device and two layers board for size fixing. It adds the waste board takeaway device, and make a good foundation for the automatic sealing system.





    .dust removal system of plaster board machine

    This system makes use of the pulse bag dust collector. This kind of dust collector improves the dust removal effect, and makes it reach to the environmental standard. In addition, it is convenient to deal with the dust and recycle. This system is good for the country efficiency.





    .sealing system of plaster board machine

    This system adopts the most advanced automatic sealing machine. So it has the following advantages: saving a lot of labor and force; reducing the cost of the products and increasing the production efficiency.





    control system of plaster board machine

    All of the three aspects adopt the PLC control system, AC contactor and drive and it also uses the contactless equipments such as frequency converter photoelectric sensor etc to insure the reliable operation and realize the long term and continuous running of the full automatic gypsum board production line.


    Flow chart

    Flow chart for plaster board machine

    2017 year gypsum wallboard machine

    Lvjoe company

    Hebei Lvjoe Machinery Manufacturing Co.,Ltd.



    Hebei Lvjoe Machinery Manufacturing Co., Ltd. is professional in designing and manufacturing all kinds of industrial equipments.

    In the last few years, we have successfully developed many kinds of industrial equipments. Pls find our products as belows:

    1.Paper faced gypsum board machine/ plaster board machine;

    2. Gypsum powder production line;

    3. Gypsum block production line;

    4. Gypsum board lamination machine;

    5. Mineral wool board production line; etc.

    With professional and scientific operations, we will continue to provide the most humanity management and entrepreneurship opportunities for all the old and new customers!

    Machine information

    Paper faced Gypsum Board machine



    LVJOE plaster board machine applies the international latest equipments, and the finished gypsum boards have many advantages, such as good appearance, exact size and thickness, stable quality, etc.



    The brief introduction of plaster board machine:

    The plasterboard machine take gypsum plaster for building purpose as the main raw material, mix it with chemical additives and water, continue pours into the space between two shielding tissue, through edge sealing, pressure, coagulation, cut, dry and so on, which make the light building materials. The characteristic of our gypsum board production line include low energy consumption, no pollution and quick construction.

    Annual Capacity 2 million to 30 million Square meters
    Automation Full automation or Semi automation
    Certificate ISO9001,CE
    Drying System Hot air or Thermal oil
    Fuel Variety coal, natural gas, diesel oil, heavy oil, etc.

    Production process:

    Dosing Section---Forming Section---Cutting Section---drying Section---Edge Trimming Section---Stacking Section

    Main raw materials of gypsum board:

    Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp

    The consumption of the raw materials (based on 1200*3000*9.5mm gypsum board)

    Raw material The consumption for one piece(kg)
    Gypsum powder(CaSO4·1/2H2O) 21.6
    faced paper(210g/m2) 1.45
    Modified starch 0.162
    Foaming agent 0.022
    White latex 0.007
    Electricity 0.95kw*h
    Water 15.12



    Main systems of plasterboard machine:

    1. Paper Supply System; 2. Gypsum Powder Supply System; 3. Water Supply System;

    4. Foaming System; 5. Forming System; 6. Conveying System;

    7. Drying System; 8. Heating System; 9. Size Fixing System;

    10. Dust Removal System; 11. Sealing System; 12. Control System

    Our Services

    1.The following is our main product:

    1.Plasterboard machine

    2. Gypsum board lamination production line

    3. Natural gypsum powder production line

    4. Desulfurized gypsum powder production line



    2.Service scale

    1. Our company has professional installation & debug teams. We will install and debug the production line at the customers’ place until the equipment produces the qualified products.
    2. We supply the accessories all the year round. The guarantee time of the equipment is one year.
    3. We are responsible for the technical consultation and service all the year around and solve all kinds of technical problems at any time.
    4. We can help the customer to do the consignment and the relevant procedure for import and export.

    5. Our company will supply the information of the seller for all kinds of raw material and relevant information
