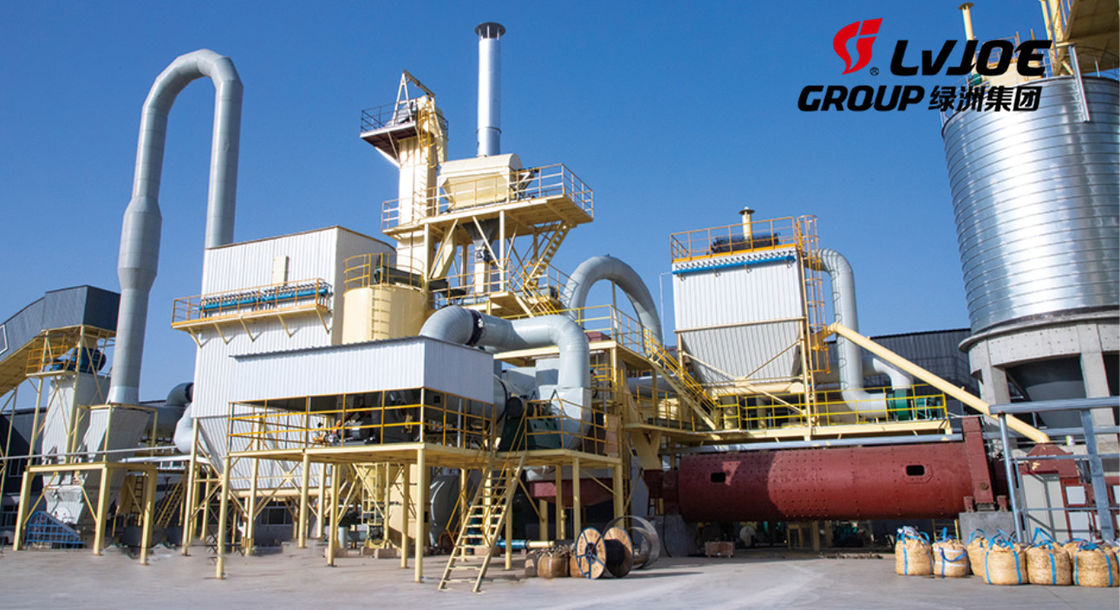

calcined plaster powder machine for FGD, natural and phodphor gypsum

gypsum powder making machine for building materails

Building Material gypsum powder making machine

Building material making machine

gypsum powder making machine

gypsum powder production line

plaster of paris making machine

calcined powder plant

Company Information:

Hebei Lvjoe Machinery Manufacturing Co., Ltd. is professional in designing and manufacturing all kinds of

industrial equipments. Our company has 300 workers, more than 80 sets of processing machines, including

2 sets of planer machines, one set of milling machine, 2 sets of boring machines, 50 sets of lathes and 3 sets

of PLC processing centers.In the last few years we have successfully developed many kinds of industrial equipment including gypsumboard production line, gypsum board lamination machine, gypsum powder production line, gypsum block production line, mineral wool board production line.

Product Description:

Gypsum powder plant:12,000 ton/year~300,000 ton/year

Automation: fully automatic

Calcination system:

1.using boiling furnace to calcine

2.adopting heat conductive oil furnace as heat source

Fuel: coal, natural gas, heavy oil, diesel oil

Main materials:

natural gypsum rock, desulfurization gypsum, phosphor gypsum

Standard of product quality:

In conformity with national standard “GB/T 9776-2008 construction gypsum”

Gypsum powder production line works based on the following process:

The Crusher will break the big-size gypsum ore into small 25mm pieces, and then the small pieces will be sent to the grinder, after grinding fine, the qualified raw gypsum powder will be sent to boiling furnace to calcine, and the unqualified part will be sent to grinder until it's qualified. After calcining, the qualified gypsum powder will be sent to spiral conveyor through hoist.

The spiral conveyor will send the calcined gypsum powder to silo for storage, and cool the powder during the process. The dust remover is on the top of silo, the unqualified part will be sent to grinder until it's qualified.
The stored gypsum will be sent to product storage through steel impeller feeder, spiral conveyor, hoist, and send the qualified gypsum powder to storage or workshop finally.

The top pulse bag-type dust remover will collect dust from crusher, particle silo. When the dust and dust gas get into the dust remover through inlet, the big-size dust particle will fall because the increasing size and decreasing wind speed. The small dust particle will be filtered by filter bag. The filtered gas will be got rid of by outlet.

Main Parts of Equipment:
1. Ore Station
2. Crusher
3. Grinding System
4. Calcine Kiln
5. Exit System
6. Material Elevator
7. Silo
8. Entrance System
9. Coal/Natural Gas System
10. Dust Collector
11. Material Elevator
12. Aging Silo

The related parameter of the product (GB9776-88 calcined gypsum)
1. Fineness:≥80 mesh
2. Antiflex strength (it is related to the raw material): ≥1.8Mpa; compression strength: ≥3.0Mpa
3. Main component:
semi-hydrated gypsum content: ≥80% adjustable
dehydrate gypsum content: <5% adjustable
Soluble anhydrous gypsum: <5% adjustable
4. The initial setting time: 3~8min adjustable;
The final setting time: 6~15min adjustable
5. Standard consistency: 78~85% adjustable
