| Place of Origin: | Hebei, China |
| Brand Name: | LVJOE |
| Certification: | ISO9001;CE;SGS |
| Model Number: | LVJOE202510 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD390,000 |
| Packaging Details: | 40HQ |
| Delivery Time: | 90 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per year |
| Name: | Gypsum Board Machinery Production Line | Annual Capacity: | Mini 2 Million M2 Per Year |
|---|---|---|---|
| Drying Type: | Hot Oil And Hot Air | Control System: | PLC Computer |
| Power Supply: | 3 Phase 380V/415V/50HZ | Motor Brand: | Siemens Or Schneider |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
ypes of heating equipment
| Heating type | Output/year | advantages |
| Oil conducting type | 2million-50 million sqm/year |
Good appearance shape, large output |
|
Hot air conducting type |
2 million-50 million sqm/year |
Low investment, energy saving, |
Specification of the gypsum board
| Total production capacity/per year | 2-50 million square meter per year |
|
Types of final production |
Common paper-faced gypsum board |
| Fire resistance paper-faced gypsum board | |
| Water resistance paper-faced gypsum board | |
|
Production specifications |
Thickness: 6.5-18mm |
| Length :1800-3000mm | |
| Width :1200-1220mm | |
| Quality of the productions |
Superior to the international standard GB9775-1999 |
| Raw materials | Paper, white latex, modified starch |
1. Paper supply system
2. Gypsum powder supply system
3. Foaming system
4. Forming system
5.Conveying system

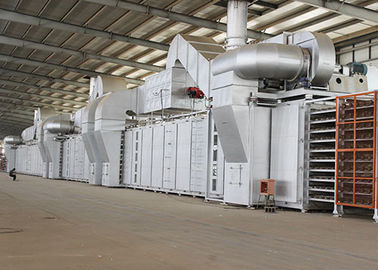

6. Drying system
7. Heating system
8. Dust collector
9. Control system
Final product: Gypsum board
Pictures with customers
Character of the gypsum board production line
1.Easy to form a complete equipment. Except the special parts for the production line, the other
parts can use the Chinese standard equipment.Control the quality in strict accordance with the
ISO9001. The key electronic components use the high quality products from the internationally
known company.
2.The scale of production and the area of the plant is moderate and match the automation and the
mechanization of the production line, which is easy to manage.
3.The production line adopts Germany's advanced technology and our researching personnel
research on the main parts like dosing, forming and drying to design high efficiency, stability and
energy saving production line.
4.Less investment and mature production technology. The production cycle is short and the
customers will benefits very quickly.
